Ship To Shore Hose Lightweight Chemical Resistant Durable Easy Handling
Description
Composite STS Hoses are lightweight yet durable, designed for transferring petroleum, chemicals, and LNG. Unlike rubber hoses, they are built with multiple layers of thermoplastic films and fabric reinforcements, offering excellent flexibility without sacrificing pressure resistance.
Case Study: Rotterdam Chemical Terminal
A major chemical terminal struggled with frequent hose replacements due to chemical incompatibility. After switching to Composite STS Hoses, the replacement cycle doubled from 2 years to 4 years. Maintenance costs dropped by 45%, while loading efficiency improved because crews could handle lighter hoses with less manpower.
Specifications
| Material | PTFE, Galvanized Steel Wire, PVC Coated Polyester Cloth |
| Product Name | STS Hose |
| Size | HM-SH78 |
| Inner Wire | Stainless Steel 316 |
| Lining | Polyamide |
| Carcass | Polyamide fabrics, Polyester films |
| Outer Wire | Stainless Steel 316 |
| Working Pressure | 10 bar to 21 bar |
| Maximum Length | 40 meters |
| Sample | Available |
| Delivery time | Normally 3-5 days |
| Model | Dimensions | Working Pressure | Safety Factor | Bending Radius | Weight | Length | ||
| Composite | [mm] | [inch] | [bar] | [psi] | [kg] | [m] | ||
| HM-SH20 | 20 | 3/4" | 16 | 230 | 6:1 | 80 | 0.8 | 40 |
| HM-SH25 | 25 | 1" | 16 | 230 | 6:1 | 100 | 1 | 40 |
| HM-SH32 | 32 | 11/4" | 16 | 230 | 6:1 | 125 | 1.3 | 40 |
| HM-SH40 | 40 | 11/2" | 16 | 230 | 6:1 | 140 | 1.5 | 40 |
| HM-SH50 | 50 | 2" | 16 | 230 | 6:1 | 180 | 2.5 | 40 |
| HM-SH65 | 65 | 21/2" | 16 | 230 | 6:1 | 200 | 3.3 | 40 |
| HM-SH80 | 80 | 3" | 16 | 230 | 6:1 | 260 | 4 | 40 |
| HM-SH100 | 100 | 4" | 16 | 230 | 6:1 | 380 | 6.8 | 40 |
| HM-SH125 | 125 | 5" | 16 | 230 | 6:1 | 440 | 9.2 | 40 |
| HM-SH150 | 150 | 6" | 16 | 230 | 6:1 | 500 | 13.2 | 40 |
| HM-SH200 | 200 | 8" | 16 | 230 | 6:1 | 750 | 18 | 40 |
| HM-SH250 | 250 | 10" | 16 | 230 | 6:1 | 900 | 26 | 25 |
| *Note: Various sizes can be customized according to the requirements. | ||||||||
Features
Multi Layer Composite Wall
Thermoplastic films provide chemical resistance, while reinforcement fabrics offer structural integrity.
Value: Withstands aggressive solvents that degrade traditional rubber hoses.
Lightweight Construction
30–40% lighter than rubber hoses, reducing crew fatigue and crane load.
Example: A 10m hose can be lifted by two operators instead of requiring machinery.
Vacuum Resistance
Designed to prevent collapse during suction operations, making it suitable for loading/unloading.
Advantage: Ensures reliable flow even when pressure fluctuates.
Longer Chemical Compatibility
Tested against 800+ chemicals, ensuring broad application.
Comparison: Outperforms rubber hoses that often fail when exposed to strong solvents.
Applications
Chemical Tanker Operations
Ensures safe transfer of acids, solvents, and fuels.
LNG and LPG Transfer
Handles cryogenic temperatures with reinforced inner layers.

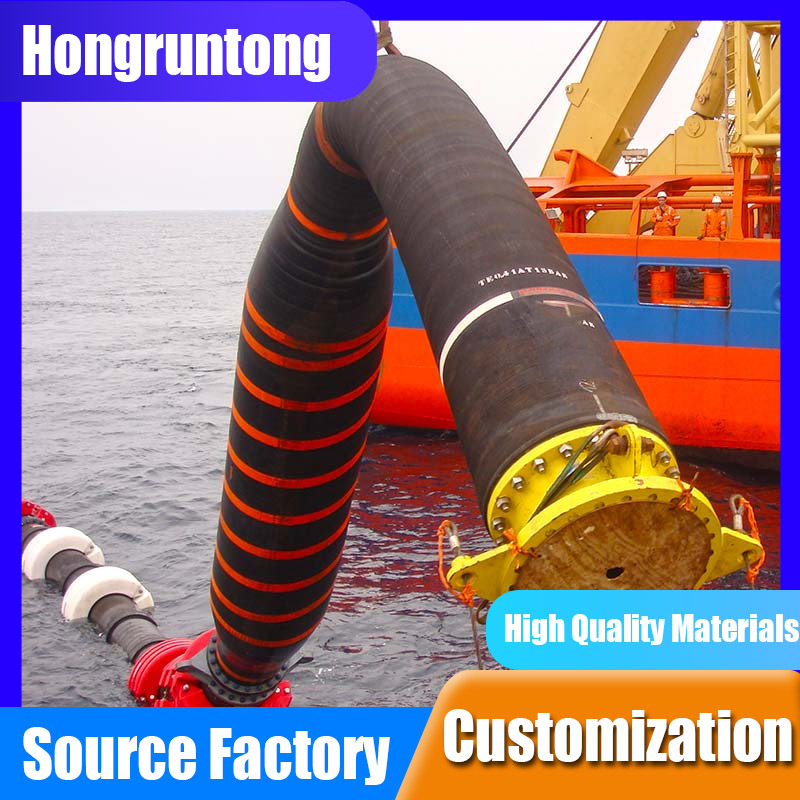

Fuel Bunkering
Lightweight hoses simplify offshore ship refueling.

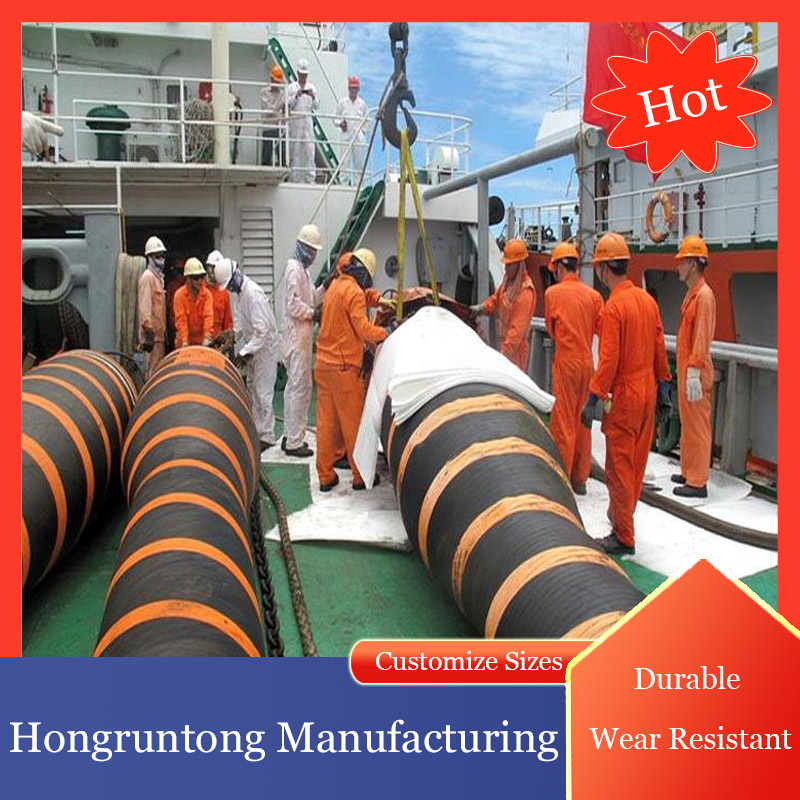

Port Operations
Easy to deploy for multipurpose transfer between ships and terminals.
Why Choose Hongruntong Marine?
Specialist in Composite Hose Technology
Designed using advanced materials for chemical and LNG terminals.
Certified Quality
Compliance with OCIMF and EN13765 standards.
Custom Engineering
Tailored diameters, lengths, and couplings per cargo type.
Global Logistics
Ready-stock spare hoses in major shipping hubs.
FAQ
1. Q: What is the temperature range?
A: -30°C to +80°C, with cryogenic options available.
2. Q: Can it handle suction and discharge?
A: Yes, designed with full vacuum resistance.
3. Q: How is chemical compatibility checked?
A: Refer to our chemical compatibility chart, validated by lab testing.
4. Q: What is the service life?
A: Typically 4–6 years under normal operations, double rubber hose lifespan.
