Description

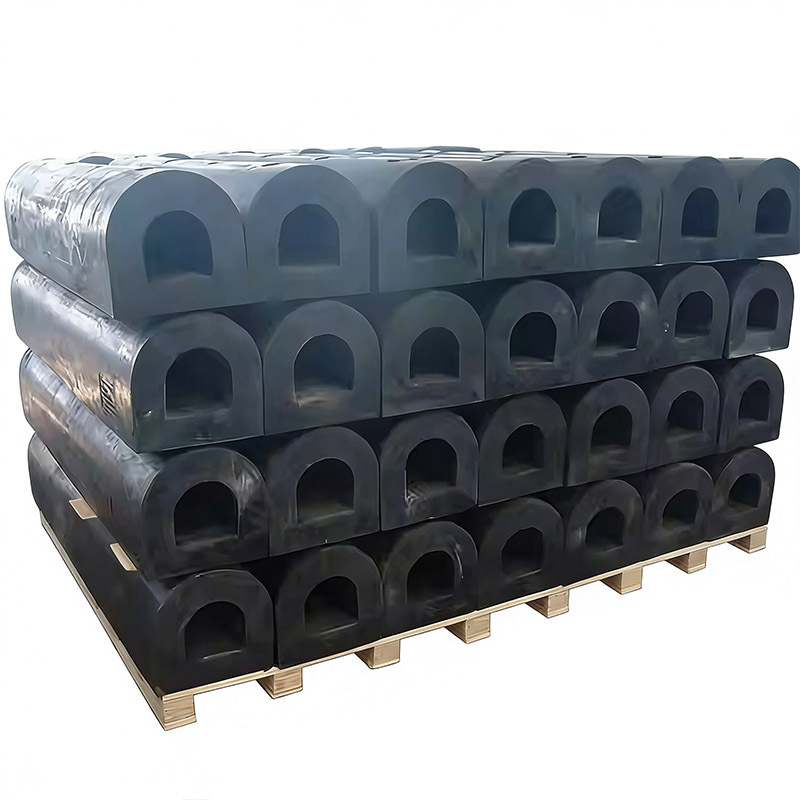

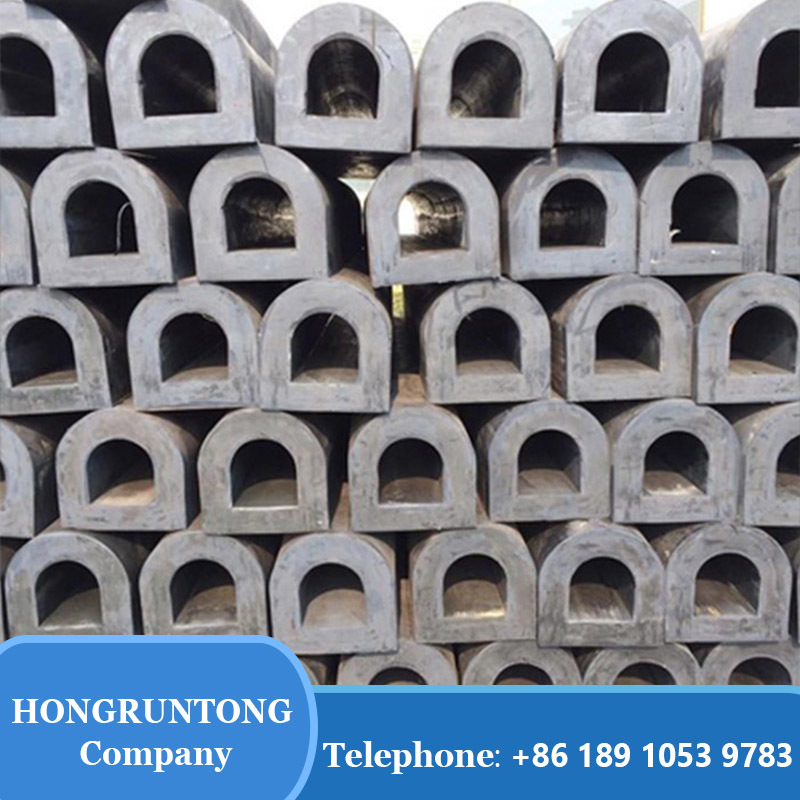

D Type Fenders are linear rubber marine protection systems engineered to deliver consistent energy absorption and structural safeguarding in medium-duty berthing environments. Manufactured using high-grade natural rubber or EPDM compounds, these fenders feature a flat mounting base combined with a semi-circular external profile, ensuring stable compression characteristics and effective force distribution during vessel contact.

The structural design enables progressive deflection under load, minimizing peak reaction forces transmitted to hull plating or quay walls. With tensile strength exceeding industry benchmarks and elongation properties optimized for repetitive compression cycles, D Type Fenders provide reliable mechanical performance over extended service periods.

Available in various heights ranging from compact 100 mm sections to heavy-duty 500 mm profiles, the system can be customized in length and hardness according to operational demands. Their resistance to UV radiation, saltwater exposure, and temperature variation ensures dependable durability in coastal, offshore, and inland marine environments.

Case Study – Tugboat Berthing Reinforcement Program

A regional port authority operating a fleet of 45-ton bollard pull tugboats experienced accelerated hull wear due to frequent push-and-hold maneuvers against container vessels exceeding 50,000 DWT. The existing cylindrical fender system lacked sufficient lateral stability, leading to uneven compression and localized damage. Hongruntong Marine supplied reinforced 350 mm D Type Fenders with optimized rubber compound hardness to improve contact surface distribution. Following installation during scheduled dry docking, vessel operators reported noticeably smoother impact absorption and reduced vibration during maneuvers. After 20 months of operation, inspection results confirmed minimal surface abrasion and no structural cracking. The port authority subsequently standardized the D Type configuration for its entire tug fleet due to improved operational safety and reduced maintenance frequency.

Specifications

Features

Progressive Energy Absorption Mechanism

The D-shaped cross-section enables controlled deformation under increasing load. Instead of abrupt compression, the geometry provides a gradual reaction force curve that effectively dissipates kinetic energy. This reduces peak stress concentration on both vessel hull plating and supporting dock structures. The structural balance between elasticity and stiffness ensures predictable performance during repetitive impact cycles.

High Abrasion Resistant Compound Formulation

Hongruntong Marine utilizes specially compounded rubber blends engineered for high tensile strength and tear resistance. The external surface maintains integrity even under continuous friction from steel hulls or painted surfaces. Laboratory testing confirms strong resistance to surface cracking, minimizing long-term degradation caused by mechanical wear.

Structural Stability Under Long-Term Compression

Unlike lower-density rubber profiles, these fenders maintain dimensional stability when subjected to sustained static loads. The internal material structure prevents permanent deformation, ensuring that rebound capacity remains consistent throughout the service life. This characteristic is critical in tidal zones where vessels remain in prolonged contact with quay walls.

Environmental Durability and UV Protection

The rubber compound incorporates anti-oxidation and anti-ozone additives that significantly enhance resistance to sunlight exposure and harsh marine climates. Optional EPDM material is available for installations in tropical or high-UV regions, maintaining elasticity across a wide temperature range from –25°C to +75°C.

Applications

Harbor Tug and Workboat Operations

D Type Fenders are extensively applied along bow and side hull sections of tugboats that engage in pushing, escorting, and docking maneuvers. The design ensures effective lateral protection while preserving vessel maneuverability and minimizing vibration transfer to the hull structure.

Medium Duty Commercial Quay Walls

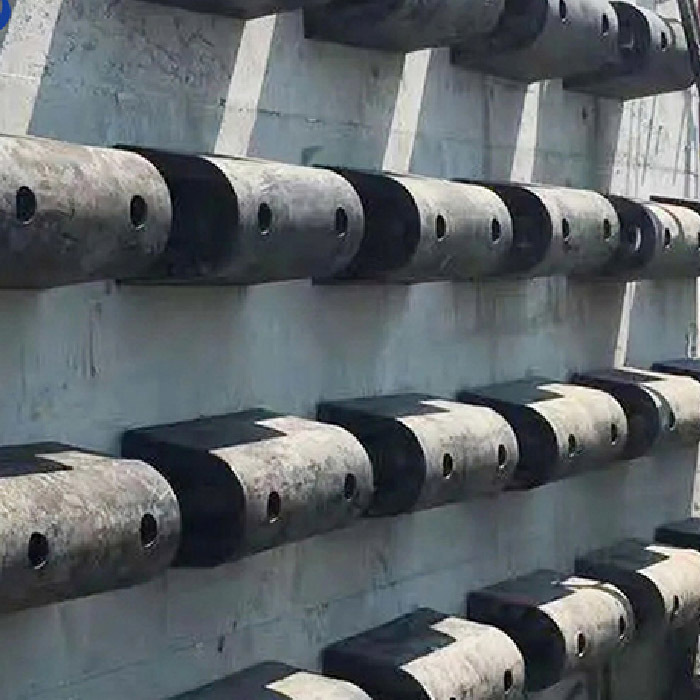

In multipurpose terminals handling general cargo vessels, fishing fleets, and coastal traders, D Type Fenders provide reliable protection without excessive structural reinforcement requirements. Their compact yet durable profile makes them ideal for retrofitting existing berthing facilities.

Inland Waterway and Barge Systems

For inland logistics operations, where vessels frequently operate in confined waterways, D Type Fenders offer dependable side-impact resistance and reduced maintenance costs due to their abrasion-resistant surface and stable compression behavior.

Why Choose Hongruntong Marine

Engineering-Oriented Design Philosophy

Hongruntong Marine approaches every project through technical analysis rather than standard catalog supply. Load calculations, vessel displacement considerations, and berthing frequency assessments are incorporated into the selection process to ensure optimal fender performance. This engineering-driven approach guarantees reliability under real operating conditions.

Advanced Rubber Compounding Expertise

Our in-house material engineering team develops proprietary rubber formulas tailored to specific environmental and mechanical demands. Each compound undergoes rigorous tensile, elongation, hardness, and aging tests before production approval. This ensures consistent mechanical behavior and extended service life.

Precision Manufacturing and Quality Control

Production follows strict dimensional tolerances to guarantee accurate fit during installation. Every batch is inspected for hardness consistency, density uniformity, and surface integrity. Traceable quality documentation is maintained for project verification and compliance requirements.

Long Term Technical Support and Customization

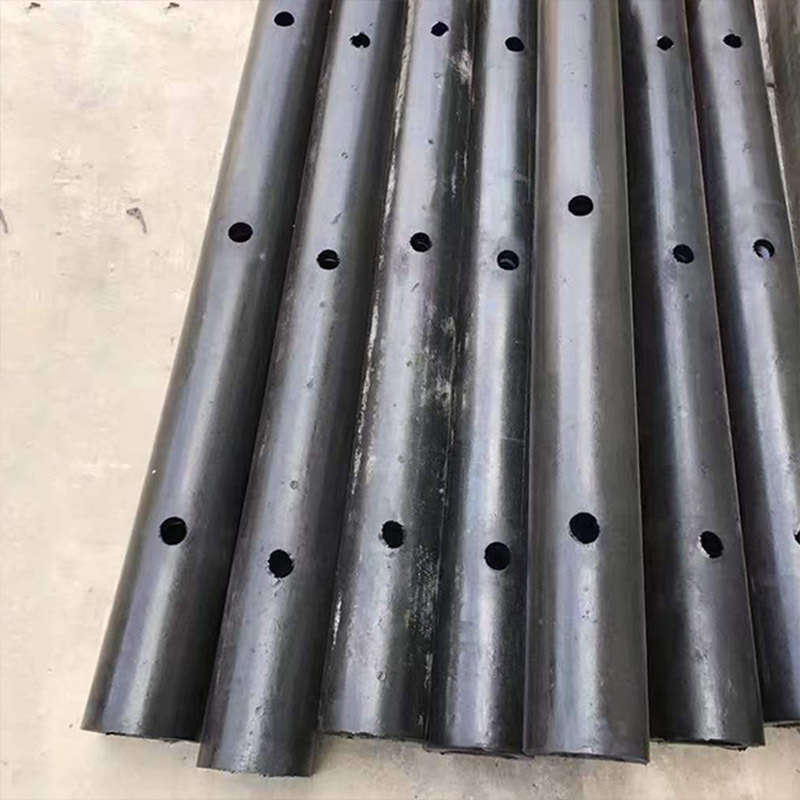

We provide complete technical drawings, installation recommendations, and ongoing performance consultation. Custom lengths, pre-drilled mounting configurations, and hardness variations are available to match unique operational requirements. Our after-sales service ensures continued system efficiency throughout the product lifecycle.

FAQ

1. What is the typical hardness range of D Type Fenders?
Standard hardness ranges from 60 to 80 Shore A, but custom formulations can be produced according to project load requirements.

2. Can D Type Fenders be installed vertically or horizontally?
Yes, the flat mounting base allows flexible orientation depending on structural design and impact direction.

3. What is the expected service life?
Under normal marine operating conditions, service life typically exceeds 8–12 years depending on impact frequency.

4. Are custom lengths available?
Yes, fenders can be supplied in specific cut lengths or continuous extruded sections.

5. Do you provide material test certificates?
Comprehensive material property reports and quality inspection documentation are available upon request.
