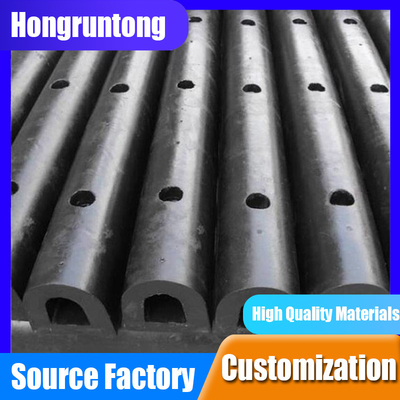

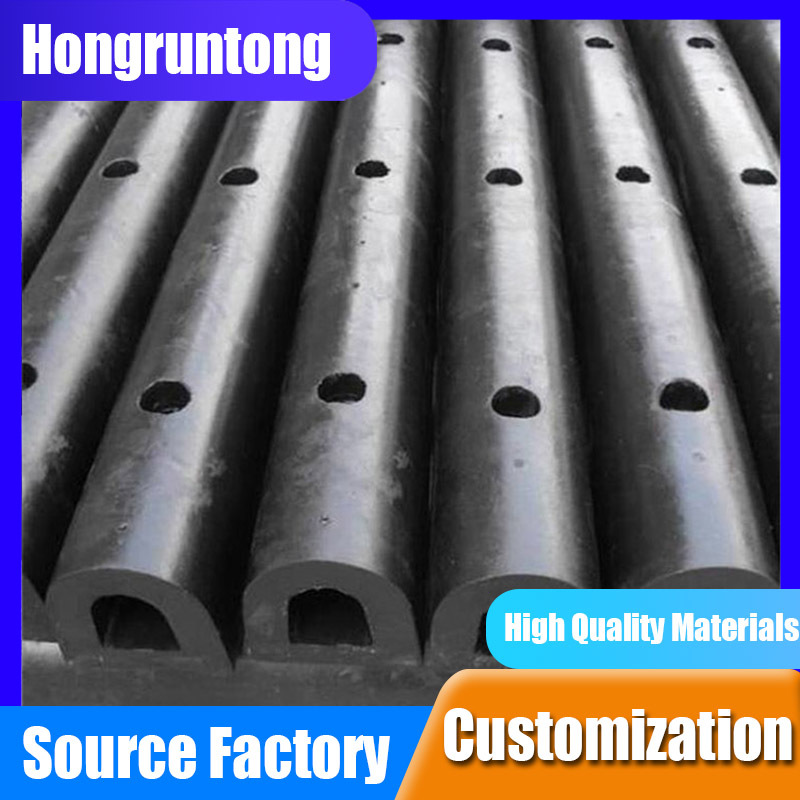

Dock Bumper Strong Impact Resistance Long Lifespan Low Maintenance UV Protection
Description
The V-type Dock Rubber Fender is engineered to deliver superior protection for berthing vessels while safeguarding dock structures from impact damage. Constructed from high-quality elastomeric rubber, it combines resilience with long-lasting durability to withstand extreme maritime conditions such as strong waves, salt corrosion, and prolonged sun exposure. Its V-shaped design provides optimal deflection and energy dispersion during docking, minimizing the risk of hull deformation and structural damage.
Case Study
At the Port of Singapore, the V-type fender was installed along a busy oil tanker berth. After one year of service, operators observed a marked reduction in minor hull scratches and structural impacts, even during high tide and strong currents. The fender effectively absorbed kinetic energy from tankers exceeding 50,000 DWT, confirming its capability in high-stress environments.
Specifications
| Place of Origin | China |
| Product Name | Dock Rubber Fender |
| Type | D Shape Type |
| Processing Service | Compression Moulded |
| Color | Black (More Colors Optional) |
| Material | Smooth NR |
| Performance | Excellent chemical and Physical Property |
| Logo | Customer's Request |
| Application | Port, Dock, Boat |
| Type | Specifications | ||||||||
| H | B | L | Holes | Q | C | h | D | d | |
| D150x150x1000 | 150 | 150 | 1000 | 3 | 350 | 150 | 25 | 40 | 24 |
| D200x200x1000 | 200 | 200 | 1000 | 3 | 353 | 150 | 35 | 55 | 30 |
| D200x200x3000 | 200 | 200 | 3000 | 8 | 400 | 100 | 35 | 55 | 30 |
| D250x250x1000 | 250 | 250 | 1000 | 3 | 350 | 150 | 35 | 60 | 30 |
| D250x250x3000 | 250 | 250 | 3000 | 8 | 400 | 100 | 35 | 60 | 30 |
| D300x300x1000 | 300 | 300 | 1000 | 3 | 350 | 150 | 40 | 65 | 32 |
| D300x300x3000 | 300 | 300 | 3000 | 8 | 400 | 100 | 40 | 65 | 32 |
| D300x360x1000 | 300 | 360 | 1000 | 3 | 350 | 150 | 40 | 65 | 32 |
| D300x360x3000 | 300 | 360 | 3000 | 8 | 400 | 100 | 40 | 65 | 40 |
| D400x400x1000 | 400 | 400 | 1000 | 3 | 400 | 150 | 55 | 80 | 32 |
| D400x400x3000 | 400 | 400 | 3000 | 8 | 400 | 100 | 55 | 80 | 40 |
| D500x500x1000 | 500 | 500 | 1000 | 3 | 350 | 150 | 90 | 97 | 45 |
| D500x500x3000 | 500 | 500 | 3000 | 8 | 400 | 100 | 90 | 97 | 45 |
| TECHNICAL DATA | ||
| PROPERTIES | TEST STANDARD | VALUES |
| Compound | - | NR / SBR |
| Density (Specific Gravity) | DIN 53505 | 1200 kg/m3 |
| Tensile Strength | DIN 53504 | ≥16 MPa |
| Elongation at Break | DIN 53504 | ≥350% |
| Tear Resistance (23°C) | DIN 53507 | ≥80 N/cm |
| Abrasion Resistance | DIN 53516 | ≤100mm3 |
| Compression Set (24hrs @ 70°C) | DIN 53517 | ≤40% |
| Ozone Resistance (ppm 20% 72hrs @ 40°C) | ISO 143/1 | No Cracking Visible By Eye |
| Change In Hardness | DIN 53504 | ≤5° |
| Change In Tensile Strength | DIN 53504 | ≥80% |
| Change In Elongation at Break | DIN 53504 | ≥80% |
| Minimum Temperature | - | -30°C |
| Maximum Temperature | - | +70°C |
Features
Enhanced Energy Dissipation
The V-type fender’s unique shape allows it to distribute berthing forces evenly across the contact surface. Testing under simulated berthing conditions shows that it can reduce the impact force by up to 45% compared to traditional rectangular fenders, ensuring both vessel safety and dock longevity.
Premium Rubber Composition
Hongruntong Marine’s rubber blend features superior elasticity and wear resistance. The material resists saltwater, UV exposure, and harsh temperatures, guaranteeing consistent performance over time. Laboratory testing confirms that the material maintains over 85% of its original elasticity after 7 years of continuous outdoor exposure.
Versatile Installation
The V-type fender can be installed on vertical or horizontal surfaces and is compatible with both new constructions and retrofit projects. Its modular design simplifies replacement and reduces downtime. Maintenance is straightforward, requiring only periodic inspections and cleaning.
Sustainable and Cost-Effective
The fender’s long lifespan minimizes replacement frequency, lowering overall maintenance costs. The environmentally friendly rubber meets international marine standards and does not release harmful substances into the water, supporting sustainable port operations.
Applications
Oil and Chemical Terminals
V-type fenders protect both vessels and piers from high-impact berthing while resisting chemical corrosion, making them ideal for oil and chemical ports.
Bulk Cargo Ports
These fenders are suitable for berthing bulk carriers, efficiently absorbing impacts from vessels loaded with heavy materials like coal, ore, or grains.
Ferry and Passenger Terminals
Repeated docking of ferries and passenger vessels can cause wear on docks. The V-type fender reduces impact stress, ensures passenger safety, and maintains dock integrity even during high-traffic periods.
Why Choose Hongruntong Marine?
Advanced RD and Product Innovation
Hongruntong Marine invests heavily in research and development. The V-type fender is the result of extensive simulations and real-world testing to optimize energy absorption, durability, and performance. In-house labs rigorously test each batch for tensile strength, compression resistance, and UV degradation.
Comprehensive Manufacturing Quality Control

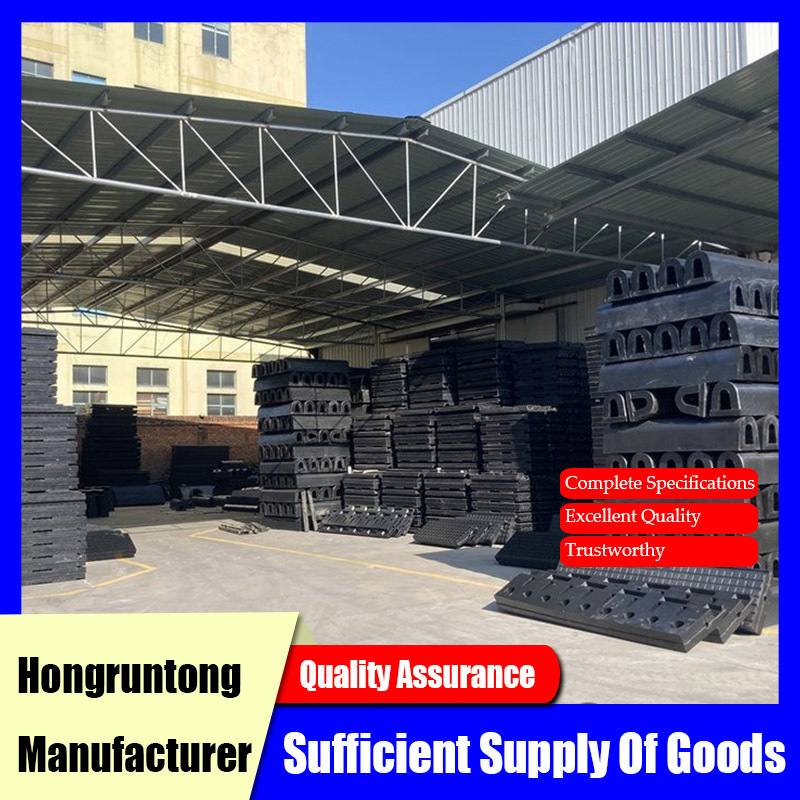

Each fender is manufactured with precision molding techniques and undergoes strict quality inspections. From raw material selection to final delivery, all stages comply with ISO 9001 standards. Random batch testing ensures consistent quality for large-scale projects.
Proven Track Record with Global Clients
Our fenders are trusted by ports worldwide. Installations at Singapore, Abu Dhabi, and Rotterdam highlight reliability, long service life, and performance under heavy traffic and extreme weather conditions.
Professional Support & After-Sales Service
Hongruntong Marine provides full technical support from installation guidance to maintenance training. Our dedicated service team ensures rapid response to operational issues, with spare parts and technical advice readily available.
FAQ
1. What sizes are available for the V-type Dock Rubber Fender?
We offer a range of standard sizes and can customize dimensions to meet specific port requirements.
2. How long is the service life of the fender?
Properly maintained, V-type fenders last 8–15 years depending on usage and environmental conditions.
3. Can the fender withstand extreme weather?
Yes, the rubber material resists temperatures from -40°C to 70°C, UV radiation, saltwater, and industrial pollutants.
4. Is the installation process complicated?
Installation is straightforward. Detailed manuals and optional on-site support are provided. The modular design allows individual sections to be replaced without dismantling the entire system.
